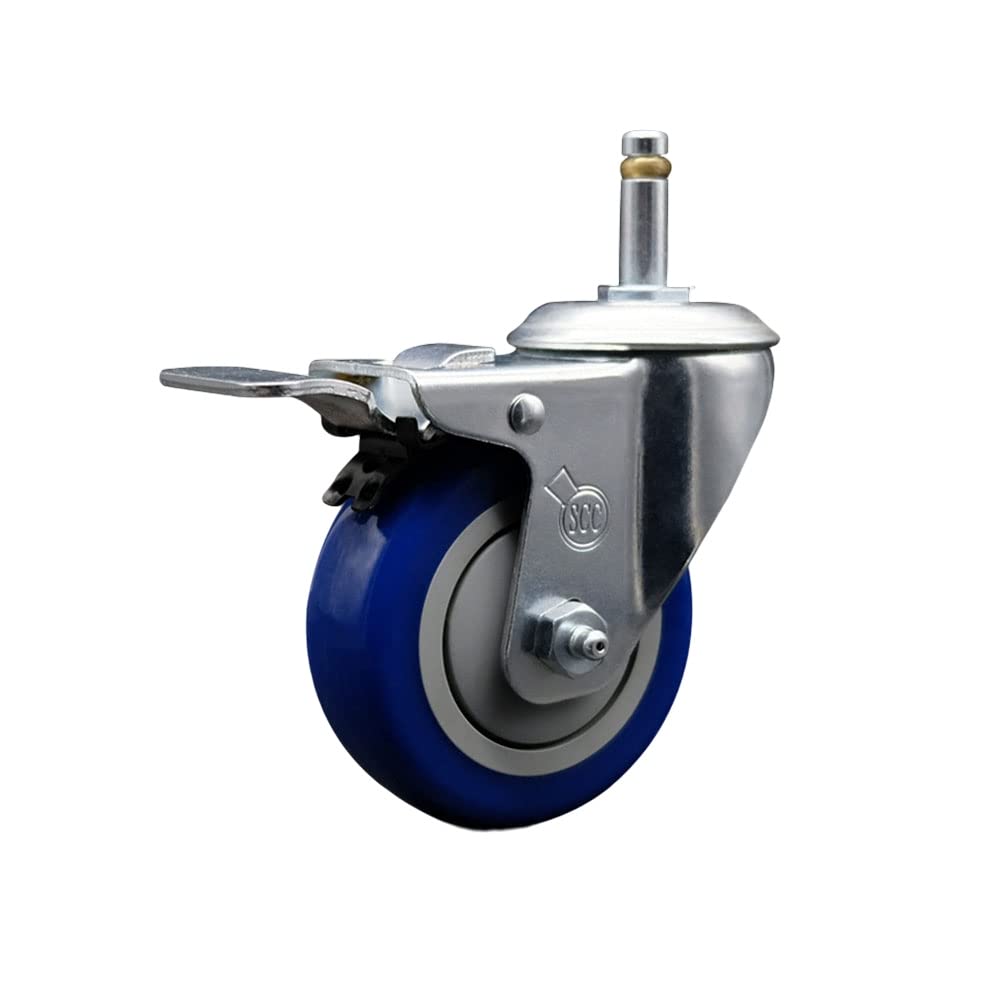

Polyurethane Swivel Grip Ring Stem Caster w/4" x 1.25" Blue Wheel and 7/16" Stem & Top Locking Brake - 350 lbs Capacity/Caster - Service Caster Brand
Product details
| Management number | 218160140 | Release Date | 2026/05/03 | List Price | $11.80 | Model Number | 218160140 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
- Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster
- All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
- Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
- Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
| UPC | 734005092189 |
|---|---|
| Size | 4" Wheel |
| Color | Swivel - Top Lock Brake - Blue |
| Rim Size | 4 Inches |
| Brand Name | Service Caster |
| Unit Count | 1.0 Count |
| Manufacturer | Service Caster |
| Model Number | Series #20 |
| Item Diameter | 4 Inches |
| Material Type | Polyurethane Tread on Polyolefin Core |
| Exterior Finish | Bright Zinc Plated Finish |
| Manufacturer Part Number | SCC-GR20S414-PPUB-BLUE-TLB-716138 |
